High precision Electro hydraulic Synchronous CNC Press Brake KCN-16032 with DA52S

  • 1 - 2 Sets
    $22,100.00
  • >=3 Sets
    $21,500.00
Nominal Pressure (kN):
1600
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$22,100.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Place of Origin:
China
Brand Name:
KingBall
Extra Services:
Machining
Material / Metal Processed:
Brass / Copper, Stainless Steel, ALLOY, Aluminum
Condition:
New
Certification:
ce
Automation:
Automatic
Year:
2019
Machine Type:
Synchronized
Length of Working Table (mm):
3200 mm
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Motor Power (kw):
11 kw
Key Selling Points:
Easy to Operate
Slider Stroke (mm):
200 mm
Automatic Level:
Fully Automatic
Throat Depth (mm):
350 mm
Width of Working Table (mm):
300 mm
Weight (KG):
10000
Nominal Pressure (kN):
1600 kN
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Saudi Arabia, India, Russia, South Africa
Showroom Location:
Egypt, Saudi Arabia, India, Russia, South Africa
Color:
Optional
Control system:
DA52S
Seal Ring:
NOK
Open Height:
460Mm
Voltage:
220V/380V/415V/440V/customized
Dimension:
3700*1870*2700mm
Item:
Press Brake Bending Marchine
Main motor:
Siemens Germany
Hydraulic system:
Boschrexroth
Gear Pump:
Sunny
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Press Brake is packaged by plastic,toolings are packaged by wooden
Port
shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

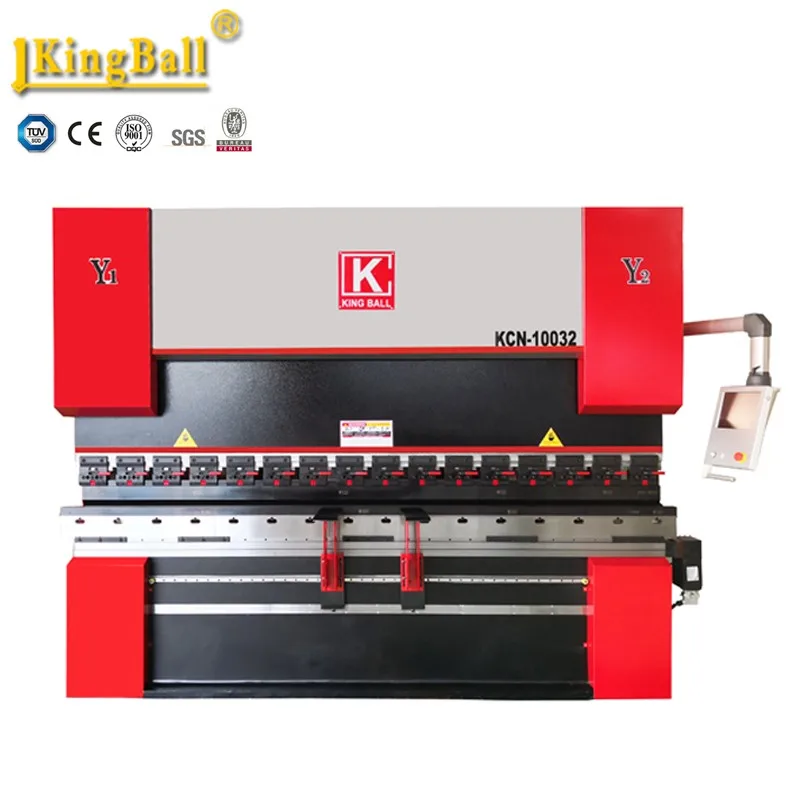

Electro hydraulic Synchronous CNC Press Brake
Model: KCN-16032

4+1 Axis CNC Control(X,Y1,Y2,R,W)
X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R : Backgauge up and down; W: Worktable crowning

Main functions and features

●Overall welded and processed structure.
●Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
● Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
● Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
●Netherlands Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
● Ram stroke(Y1, Y2),backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
●Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.

Technical Parameters


No.
Item
Parameter
Unit
1
Nominal pressure
1600
KN
2
Table length
3200
mm
3
Max.Slider stroke
200
mm
4
Max.Shut height
460
mm
5
Between columns
2700
mm
6
Throat depth
400
mm
7
Main motor power
11
KW
8
Down Speed
180
mm/s
9
Pressing Speed
12
mm/s
10
Return Speed
160
mm/s
11
Control axis
X+Y1+Y2+R +W
/
12
X axis Stroke
500
mm
13
X axis Speed
300
mm/s
14
R axis Stroke
150
mm
15
R axis Speed
50
mm/s
16
Backgauge Stoppers
2
/
17
Overall dimension
L  3700
mm
W  1870
mm
H  2700
mm
18
Machine weight
10000
KG
Detailed Images

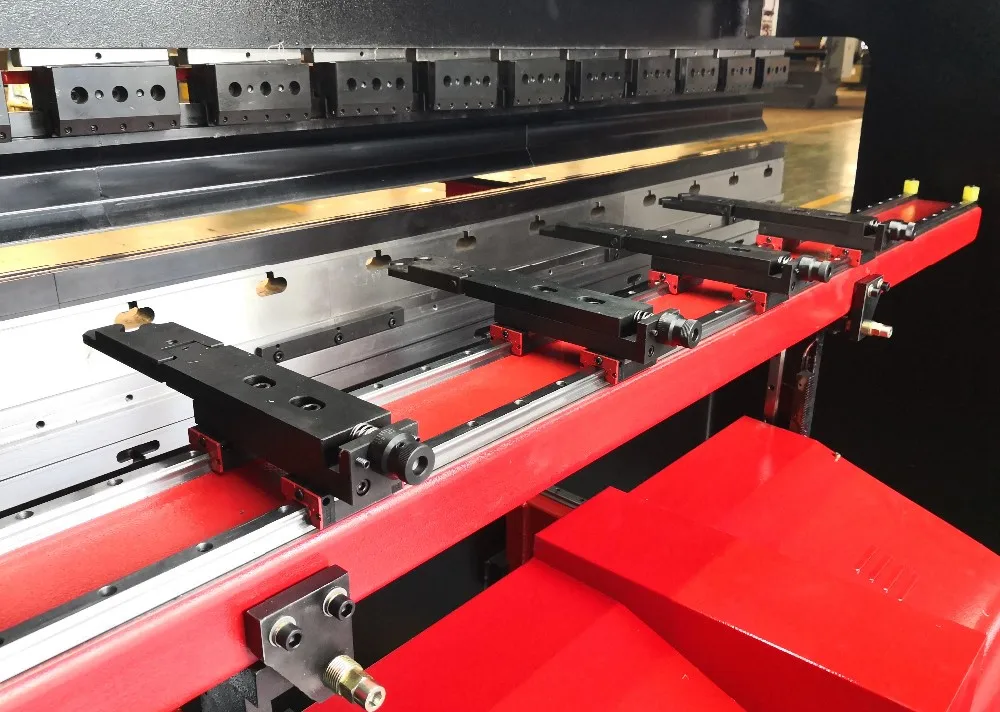

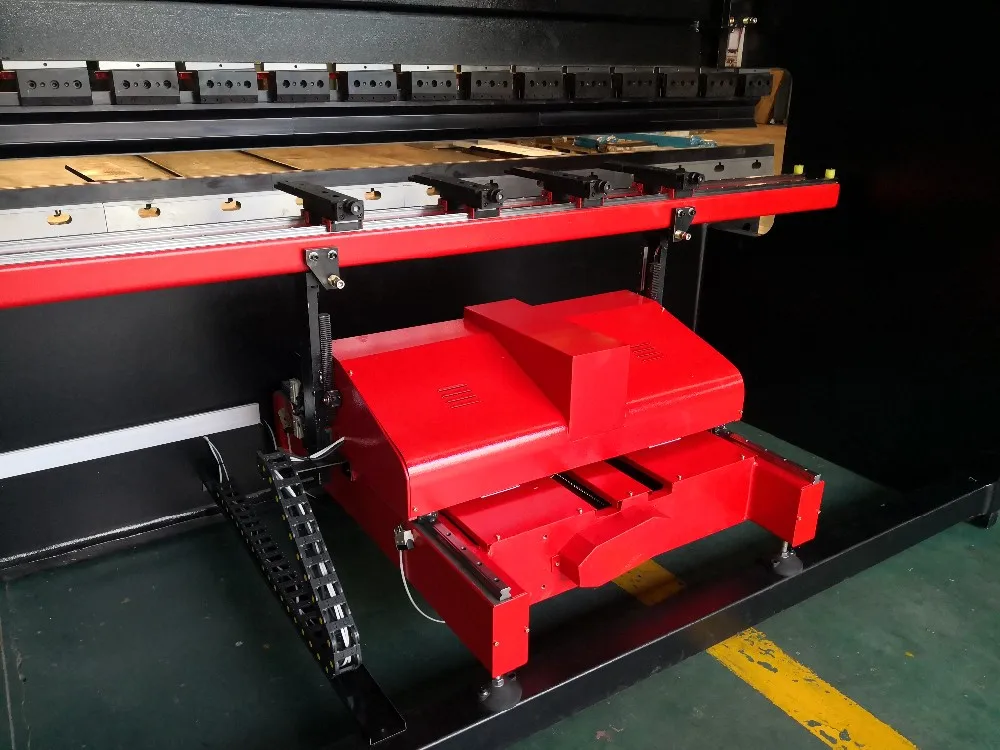

Backgauge with ball screw and linear guide, high precision, fast speed and low noise.

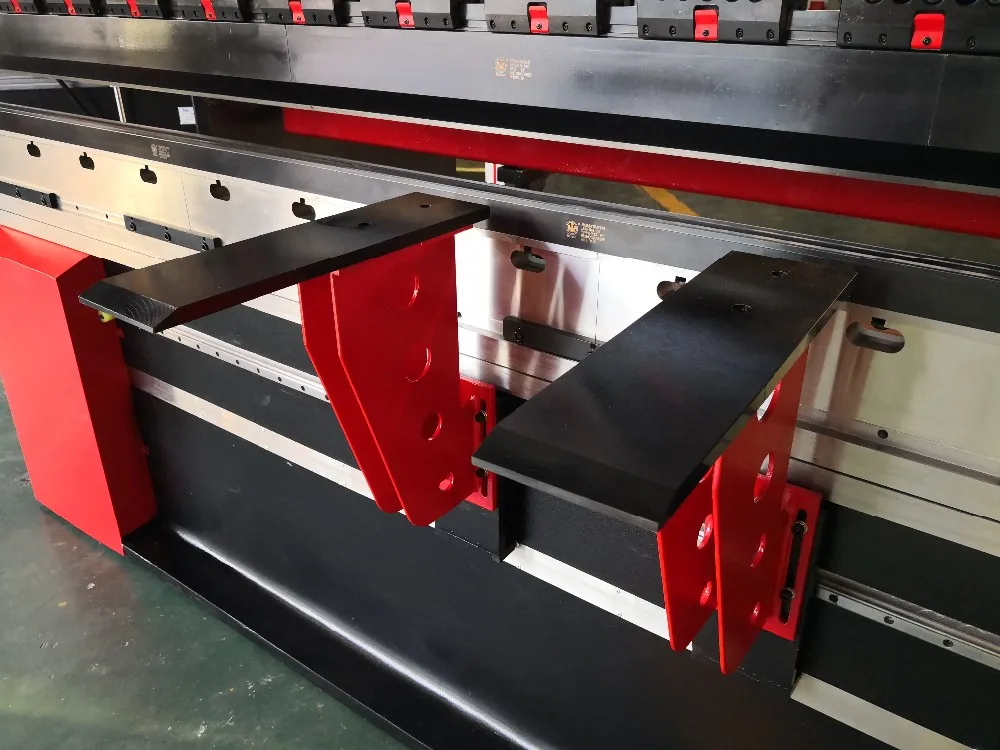

Double sliding front support arm installed
on the linear guide, movable easy

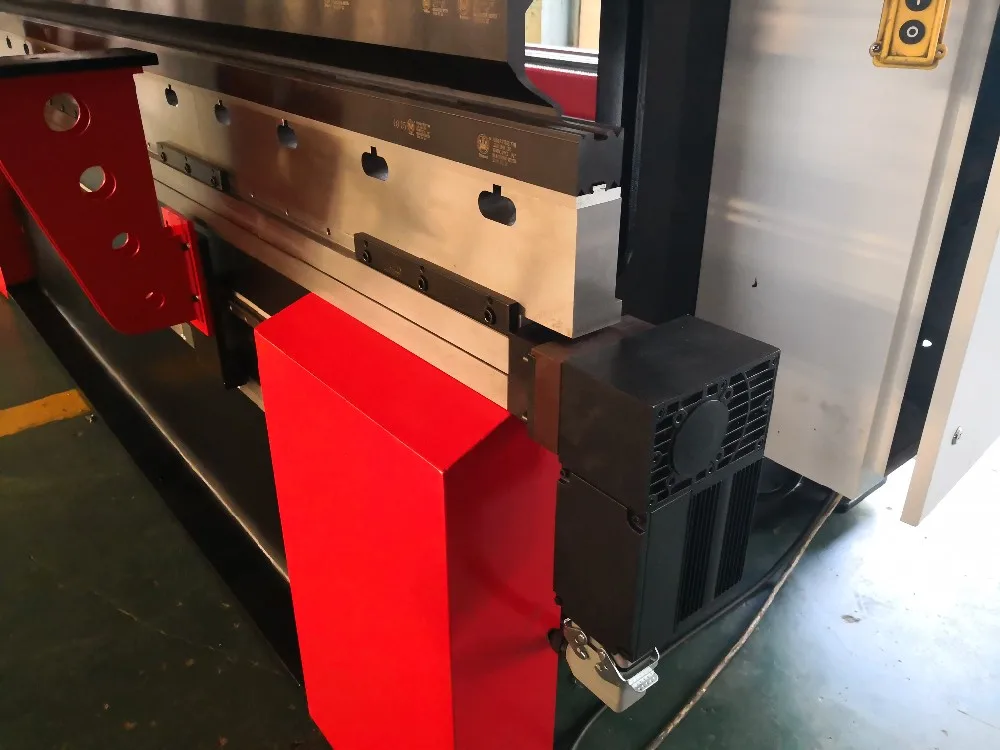

High precision electric table crowning

Siemens main motor German brand.

Sunny pump USA brand.
Rexroth valve German brand.

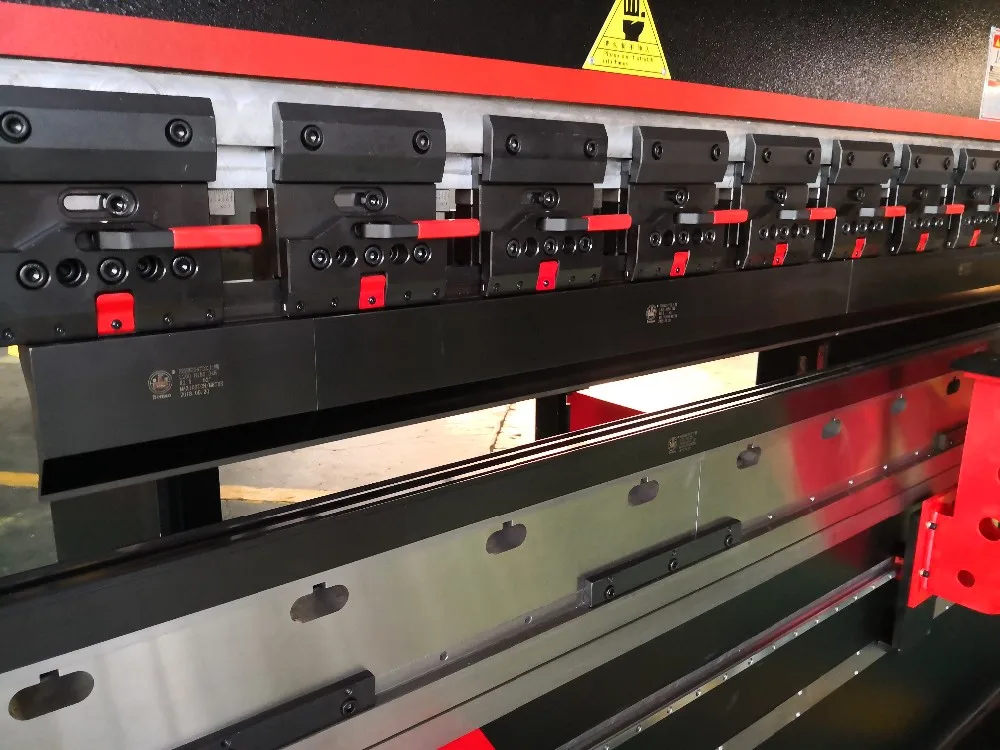

European style quick release clamping

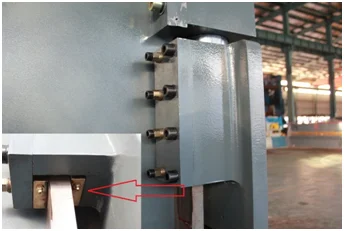

The guideway use the brass, wear-resisting, long service life.

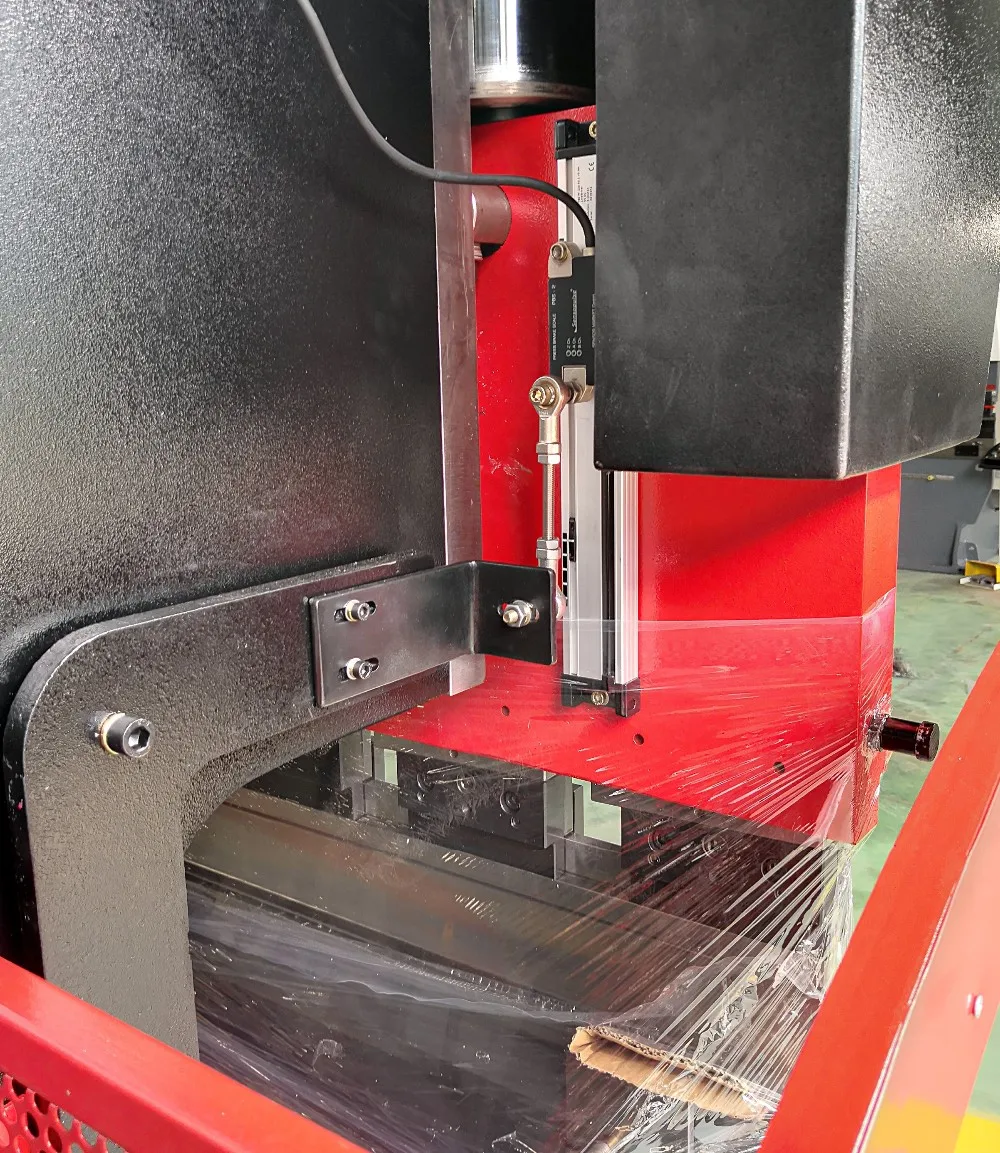

足球完场比分查询High-precision grating scale mounted on C-board

足球完场比分查询Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

足球完场比分查询The stopper move left and right on two linear guides

Main configuration


Name
Producer
DA52S Netherlands brandCNC controller
DA52S                 Netherlands brand
Main motor
Siemens              Germany brand
Electrical components
Schneider           France brand
Gear pump
Sunny                  USA brand
Seal ring
NOK                    Japan brand
Hydraulic system
Boschrexroth    Germany brand
Ball screw ,Linear guide
HIWIN                 Taiwan brand
Grating ruler
GIVI                     Italy brand
Tubing connector
EMB                   Germany Brand
Servo Motor and drive
Thinkvo             China brand

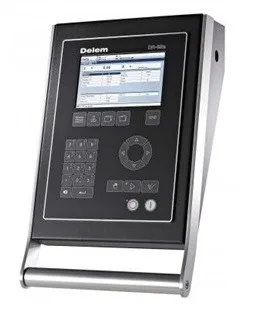

DA52S CNC controller

1,Quick, one page programming
2,Hotkey navigation
3, 3.7" VGA colour TFT
4,Up to 4 axes (Y1, Y2, and 2 auxiliary axes) Crowning control
5,Tool/material/product library
6,USB, peripheral interfacing
7,Advanced Y-axis control algorithms for closed loop as well as open loop valves

The standard accessories are in the below:

 Anchor bolt
 Hex nut
 Seal ring
 Gasket
 Grease gun
 Allen wrench

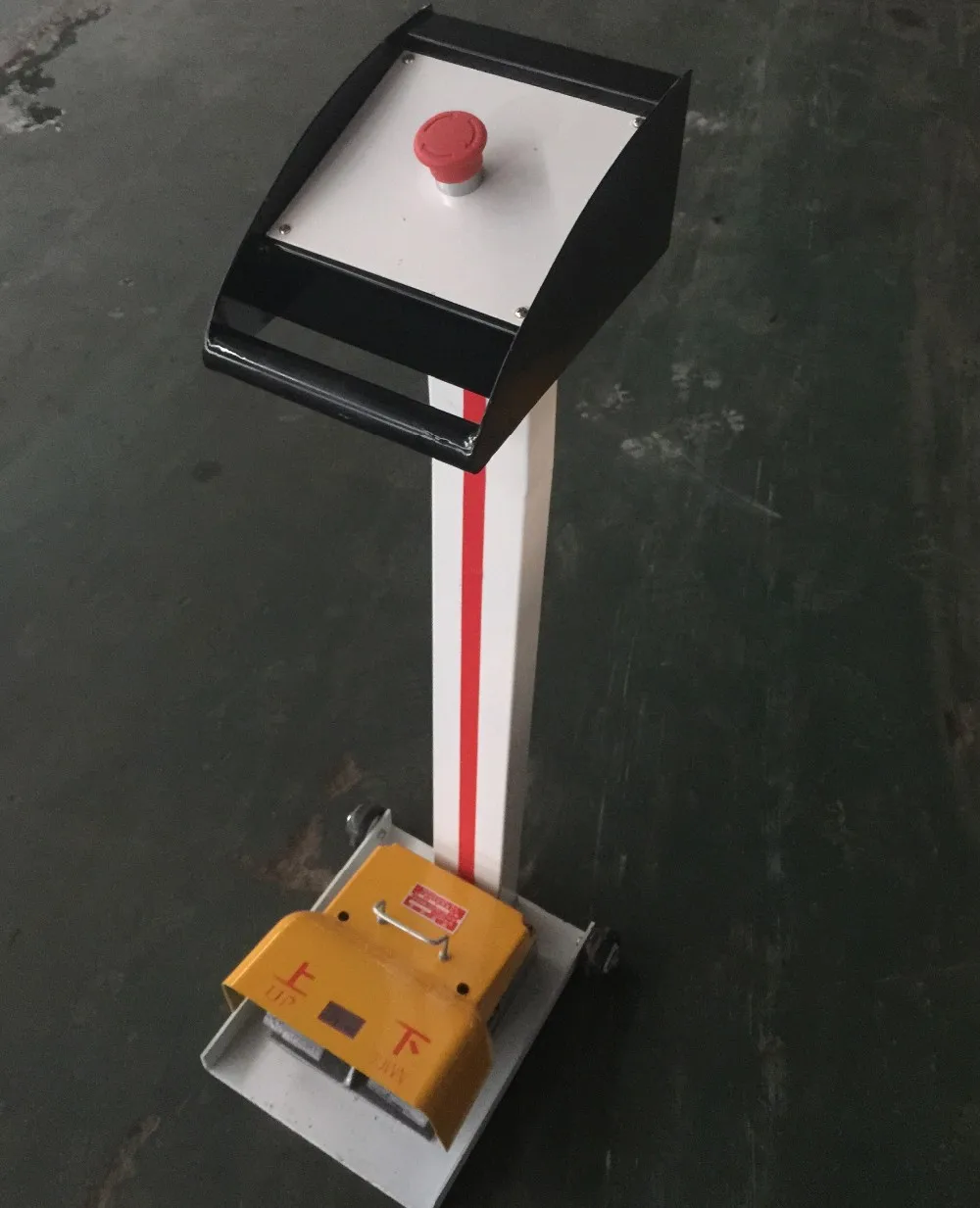

 Foot switch
 Front support arms
 Electrical box key, control panel key
 Operation manuals

Our Service

Pre-sales services:

1. inquiry and consulting support
2. sample testing support
3. visit our factory

After-sales services:

1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery overseas
